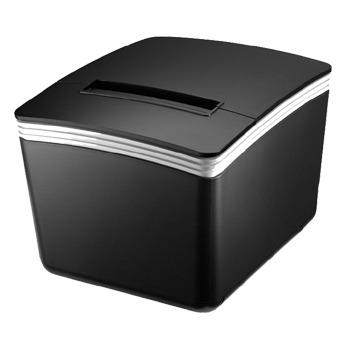

TYSSO PRP300

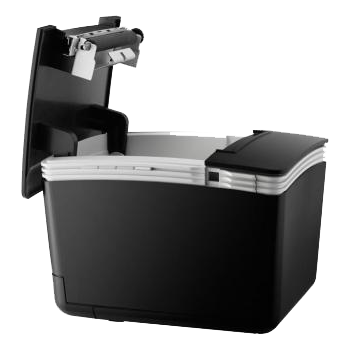

User Friendly, Drop-and-Print Paper Installation, Multi I/O Interface (Serial + Ethernet + USB), Cash Drawer Connection Port (RJ-11), Print Speed: 250 mm/sec, DPI: 203 ,Paper Auto-Cutter.
High-speed thermal receipt printer
Low-noise mechanism
Specifications
Print Method | Thermal line printing |
Print Speed | 250 mm/sec |
Print Life | 100 Km |
Print Font (ASCII Mode) | ANK Font, Font A: 12 x 24 dots, Font B: 9 x 17 dots |
Print Font (Graphic Font) | Chinese character: 24 x 24 dots |
Print Resolution | 576 dots/line or 512 dots/line |
Effective Print Width | 72 mm |
Paper Width | 79.5mm , 0.5mm |
Paper Roll Diameter | 83mm |
Paper Thickness | 0.06 ~ 0.08mm |
Driver | Win 9X / Win ME / Win 2000 / Win 2003 / Win NT / Win XP / Win Vista / Win 7,compatible with EPSON and SAMSUNG |
Print Command | ESC / POS print commands set |
Auto Cutter | Partial |
Interface | (Serial + Ethernet + USB) |
Cash Drawer | DC 24V/1A, 6-Wire RJ-11 Socket |
Power Input | 24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz) |
Color | Black / White |
Weight | 1220 g (without cable) |
Dimension (L x W x H: mm) | 174 x 144 x 124 |
Operating Temperature | 0C ~ 45C |
Operating Humidity | 10% ~ 80% RH non-condensing |
Storage Temperature | -10C ~ 60C |
Storage Humidity | 10% ~ 90% RH non-condensing |
