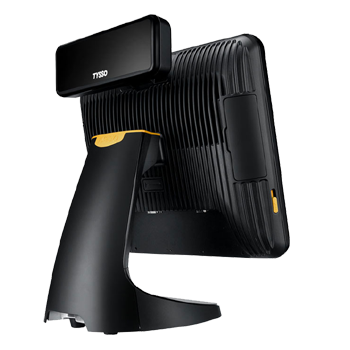

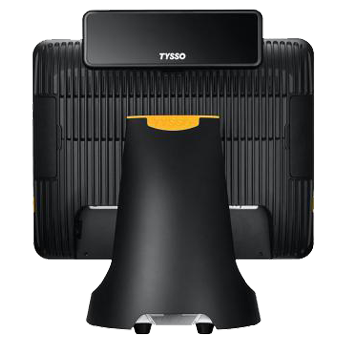

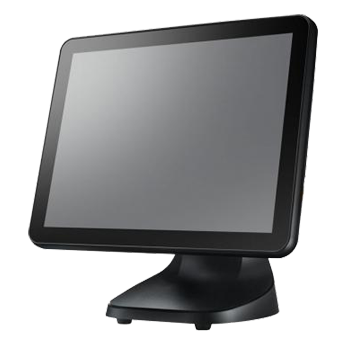

TYSSO TP7715
Fanless Design with 6th / 7th Generation Intel Core Processors,Aluminum Die-Casting Back Cover For Optimal Thermal Dissipation, Cables And Power Adapter Hidden In The Stand, IP65 / NEMA 4 Front Bezel Compliant.
Fanless POS Systems that introduces High-Performance
Noise-Free, and Reliability
Specifications
| CPU | Intel 6th Generation Skylake |
| System Memory | 2 x DDR4 SO-DIMM Socket, up to 32GB |
| Graphic | Intel HD Graphics |
| OS Support | POS Ready 7 (32/64 bit), Windows 7 (32/64 bit), Windows 8.1 (64 bit), Windows 10 IOT Value (64 bit), Windows 10 IOT High End (64 bit), Linux |
| Screen Size | 15" TFT LCD LED backlight, (Ratio 4:3) |
| Resolution | 1024 x 768 |
| Touch Screen | Ture-Flat Projective Capacitive Touch (10 point) Ture-Flat 5-wire Resistive Touch |
| Tilting Angle | 15 ~ 85 degree |
| HDD | 1st x 2.5 SATA III HDD or SSD supported in the Main Panel,2nd x 2.5 SATA III HDD or SSD supported in the base |
| RAID | N/A RAID 0/1 |
| Serial | 4 x COM (COM1~2 DB9 with RI / +5VDC / +12VDC output by BIOS,COM3~4 8P8C with RI / +5VDC / +12VDC output by jumper) |
| Parallel | 1 x DB25 Parallel Port |
| USB | 4 x USB (Bottom 4 x USB 3.0),Extra I/O choose rather 2 x USB Type A (2 x USB 2.0) or Power USB (1 x 12V/2A and 1 x 24V/3A) |
| LAN | 2 x RJ45, Giga LAN Support (10 / 100 / 1000 Mbps),- 1 x Intel I219 LAN, RJ45 (Lan 1),- 1 x Realtek RTL8111G, RJ45 (Lan 2) |
| VGA | 1 x reserved (Max Resolution: 1920 x 1080) for 2nd Display |
| HDMI | 1 x HDMI (horizontal type) |
| DC Out | 1 x +12VDC DC In: 1 x +12VDC |
| Cash Drawer | 1 x RJ-11, +12VDC / +24VDC by jumper select |
| Audio | 1 x Line out |
| Power Adaptor | +12V/7.5A, 90W External Power Adaptor with Cable Head Lock and Hide in Stand +12V/12.5A, 150W External Power Adapter (option for Power USB) with Cable Head Lock (Power Adaptor: 100VAC ~ 240VAC, 50/60Hz) |
| Color | Black / White Weight: 7.1 kg |
