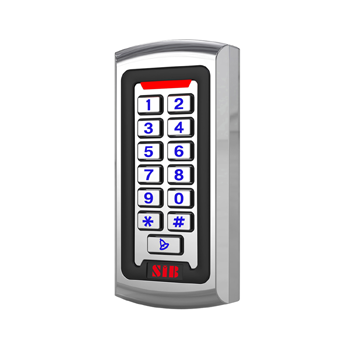

SIB S603
Aluminum alloy case, anti-vandal case, Full programming from the keypad, Can be used as a standalone keypad, Adjustable Door Output time, Alarm time, Door Open time .
Metal Standalone Keypad Access Control
Waterproof IP68
Specifications
Operating Voltage | DC 12VA?10% |
User Capacity | 2000 |
Card Type | EM,MF |
Card Reading Distance | 3-6 cm |
Active Current | <> |
Idle Current | <30mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45C~60C |
Operating Humidity | 10%- 90% RH |
Environment | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bits |
Wiring Connections | Electric Lock, Exit Button, External Alarm & Reader |
Dimensions | L123 x W58x H20 mm |
