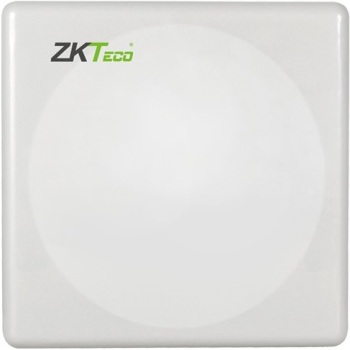

ZKTeco UHF reader
Read range up to 12 meters (adjustable), Read Sensitivity: Dual polarization
read mode, Two working mode: Trigger read & Always read, Weatherproof (IP66) .
RFID long-range proximity card reader
Waterproof and suitable for a wide range of RFID applications
Specifications
Dimension | 260*260*65(mm) for UHF1-5E , 445*445*70(mm) for UHF1-10E |
Reading distance | Up to 6 meters (adjustable) , Up to 12 meters (adjustable) |
communication interface | Serial:RS-232Console,Wiegand 26(Default) /Wiegand 34 |
Frequency | 902Mhz 928Mhz, 865MHz , 868MHz |
Shell Material | Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell |
Working Voltage | 9~16V DC |
Working Temperature | -20 C - 55 C |
Interface Protocol | EPC global UHF Class 1Gen 2/ISO 18000-6c |
Multiple tags identification | <> |
Multiple tags identification speed | >50 Per second |
Working mode | Always read(Default) /Trigger read |
I/O Interface | Supports external trigger |
Maximum power consumption | <3w (rf="" output="" 26dbm,multiple="" tags),="">3w><2w (rf="" output="" 26dbm,sigle="">2w> |
