ZKTeco InBio
Matching of fingerprints on the panels, Auxiliary relays can be functioned as lights, alarms and intrusion detection panels ,Anti-Passback, First-Card Opening, Multi-Card opening, Duress Password Entry, and Auxilary input/output .

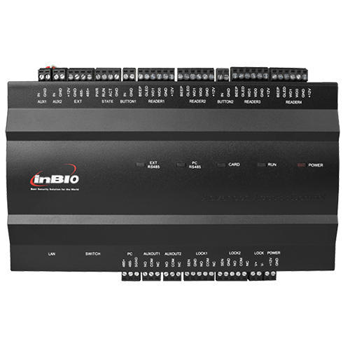

IP-based Biometric Door Access Control Panel
Support up to 3000 fingerprint templates
Specifications
| Number of Doors Controlled | 1 Door , 2 Door , 4 Door. |
| Number of Readers Supported | 4(2 RS-485 Reader, 2 26-bit wiegand reader), 8(4 RS-485 Reader, 4 26-bit wiegand reader),12 (8 RS-485 Reader, 4 26-bit wiegand reader) . |
| Types of Readers Supported: | 26-bit Wiegand and RS485 FR Series Reader . |
| Number of Inputs | 3(exit Device and Door Status, 1 AUX) , 6( 2 Exit Device, 2 Door Status, 2 AUX), 12( 4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1 form C Relay for Lock and One Form C Relay for Aux Output), 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) , |
| Card holders Capacity | 30,000 ,30,000 ,30,000 . |
| Fingerprint Capacity | 3,000 , 3,000 , 3,000 . |
| Log Events Capacity | 100,000 ,100,000 ,100,000 . |
| Communication | TCP/IP, RS-485 and WiFi optional . |
| Package Dimension | 350(L) 90(H) 300(W)mm . |
| Package Weight | 3.6kg , 3.6kg , 3.7kg . |
| CPU | 32 bit 400MHz CPU |
| RAM | 32M . |
| Flash Memory | 128M . |
| Power | 9.6V-14.4V DC |
| Operating Temp | 0-45 °C . |
| Operating Humidity | 20% t |
