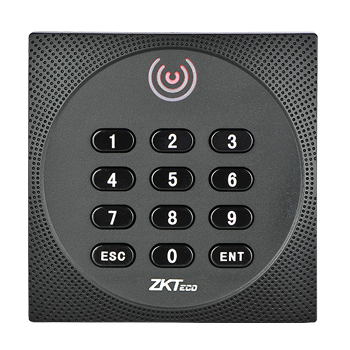

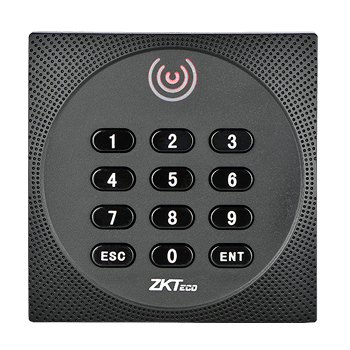

ZKTeco KR600
RFID/Mifare Card Readers , Can connect Via wiegand interface to Access control device or Control Panel
Wiegand Card Readers
125kHz EM or 13.56MHz Mifare card reader
Specifications
| Read Range | KRxxx-E: Up to 10CM, KRxxx-M Up to 5CM |
| Reading Time | =200ms |
| Input Port | External LED Control, External Buzzer Control |
| Output Port | KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default) |
| Power/Current | DC 6-14V / Max.70mA |
| LED | Red and Green LEDs |
| Operating Temperature: | -10A?C to +65A?C |
| Material | ABS+PC with texture |
| Operating Humidity | 10% to 90% relative humidity, non-condensing |
| Beeper | Yes |
| Index of Protection | KR500-E/M: IP65, KR501-E/M: IP65, KR502-E/M: IP64, KR503-E/M: IP65 |
| Standard Features | 125KHz RFID Card |
| Optional Features | 125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70), |
| Communication | RS485 |
