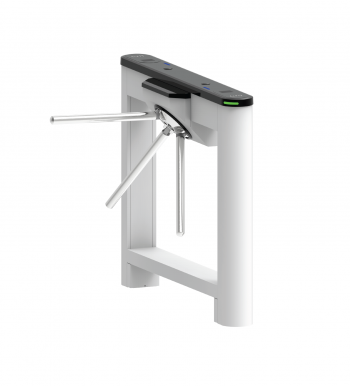

ZKTeco Saturn-T1000 in Dubai
The ZKTeco Saturn-T1000 is a drop-arm tripod turnstile designed for secure, efficient, and high-volume access control in public, commercial, and high-traffic areas. Constructed from cold-rolled SPCC steel with a SUS304 stainless-steel tripod arm, it ensures durability, stability, and resistance to harsh environments. Supporting facial recognition, RFID, and static/dynamic QR codes, it integrates with ZKBio CVAccess and CVSecurity. Features include automatic drop-arm safety, bi-directional passage, and up to 25 users per minute. Available worldwide via ZKTeco Dubai, customers can easily purchase and pay from anywhere.
Emergency-ready design with automatic drop-arm activation for safe evacuation during power loss.
Flexible authentication via facial recognition, RFID, and QR codes, fully compatible with ZKBio CVAccess and ZKBio CVSecurity.
Robust SPCC steel build with SUS304 stainless-steel arm for long-lasting, high-traffic access control.
Specifications
| Model : | ZKTeco Saturn-T1000 |
| Lane Type : | Single lane, bi-directional entry/exit |
| Lane Width : | 550 mm |
| Barrier Movement : | Rotating Tripod Arm |
| Chassis Material : | Cold-rolled SPCC Steel (GB700) with powder coating |
| Chassis Color : | Pearl White |
| Tripod Arm Material : | SUS304 Stainless Steel, Ø38mm, overload protection |
| Authentication Methods : | Face / RFID / QR Code (Static & Dynamic) |
| Flow Rate : | Face 15 p/m, RFID 25 p/m, QR Code 25 p/m |
| Visual Indicator : | LED – Blue: Standby, Green: Access Granted, Red: Alarm/Error |
| Audio Indicator : | Buzzer |
| Controller Options : | C3, InBio series, or compatible third-party controllers |
| Power Supply : | AC 110–220V, 50/60Hz; DC 12V |
| Power Rating : | Operating 40W, Standby 10W |
| Noise Level : | <65> |
| Operating Temperature : | -20°C to 70°C |
| Operating Humidity : | 20%–80% RH (non-condensing) |
| Weight : | 25 kg |
| Dimensions (L×W×H) : | 1200 × 734 × 1020 mm |
| Dimensions with Packaging : | 1300 × 305 × 1106 mm |
| Emergency / Drop Arm Function : | Arm drops automatically during power outage or emergency |
| Anti-tailgate : | Prevents unauthorized entry |
| Waterproof & Protection : | IPX4 equivalent, protective disk for dust and water |
| Installation : | Floor-mounted, easy setup, low power consumption |
| Software Integration : | ZKBio CVAccess, ZKBio CVSecurity, and compatible with third-party systems |
Key Features
Applications & Use Cases
Corporate Offices & Enterprises
Manage employee access securely and efficiently using multi-biometric authentication, ensuring smooth, controlled entry for staff and visitors across the Middle East and Africa.
Smart Buildings & Residential Complexes
Integrate the Saturn-T1000 with building management systems and video intercoms for seamless, AI-enhanced residential access control, available for purchase worldwide via ZKTeco Dubai.
Educational Institutions
Control student, staff, and visitor access with reliable biometric and QR authentication, supporting high-traffic campuses safely across the Middle East, Africa, and beyond.
Healthcare & Hospitals
Protect sensitive areas while enabling fast, orderly movement of staff, patients, and visitors with bi-directional, multi-authentication access, available for international buyers via ZKTeco Dubai.
Airports & Transportation Hubs
Secure staff and passenger entrances with fast facial, RFID, and QR verification, managing high-volume traffic efficiently across Middle East, Africa, and global locations through ZKTeco Dubai.
Frequently Asked Questions
Related Products
Multiple access options including RFID, fingerprint, LED indicators, and fast throughput up to 30 users/min.
