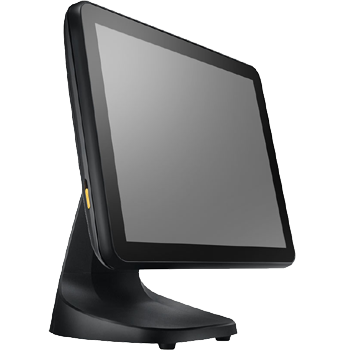

TYSSO TP2515
Easy-Maintenance, Noise-Free, and Reliability,Easy-Replacement Storage Drive Slot, Water Spill Proof Front Bezel, hard disk drive, MSR modular, Customer Display and 2nd LCD Display can swiftly install or replaced with little efforts.
Fanless POS System with Modular Mechanism
Easy-Maintenance and Fashion Style
Specifications
| CPU | Intel Bay Trail-D Platform, Celeron Processor J1900(2.0 GHz, 2M Cache, up to 2.42 GHz) |
| System Memory | 1 x DDR3L SO-DIMM Socket, up to 8GB |
| Graphic | Intel HD Graphics |
| OS Support | POS Ready 7, Windows 7, Windows 8.1, Windows 10 IOT Entry, Linux |
| Screen Size | 15 TFT LCD LED Backlight, (Ratio 4:3) |
| Resolution | 1024 x 768 |
| Touch Screen | True-Flat Projective Capacitive Touch (10 point) ,True-Flat 5-wire Resistive Touch |
| Tilting Angle | 15 ~ 85 degree |
| HDD | 1 x 2.5 SATA II Bay HDD / SSD or m-SATA |
| Serial | 4x COM (DB9 with RI / +5VDC / +12VDC output by BIOS) |
| Parallel | 1 x DB25 Parallel Port (optional) |
| USB | 4 x USB type A (3 x USB 2.0 and 1 x USB 3.0) |
| LAN | 1 x RJ-45, Giga LAN Support (10 / 100 / 1000 Mbps) |
| VGA | 1 x DB-15, Female (Max Resolution: 1920 x 1080) |
| DC Out | 1 x +12VDC |
| DC In | 1 x +12VDC |
| Cash Drawer | 1 x RJ-11, +12VDC / +24VDC by jumper select |
| Power Adaptor | +12V/5A, 60W External Power Adaptor with Cable Head Lock, hide in stand (Power Adaptor: 100VAC ~ 240VAC, 50/60Hz) |
| Color | Black / White |
| Weight | 7.1 kg |
| Dimension (mm) | 356 (W) x 318 (H) x 207 (D) mm |
| Operating Temperature | 0C ~ 40C |
| Operating Humidity | 20% ~ 80% RH non-condensing |
