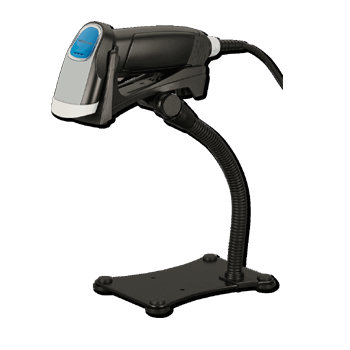

Opticon OPR3201
The OPR-3201Z is a true performer with a high plug and play factor. The laser scanner has an auto-trigger function, making hands free operating a possibility. The large pistol grip makes aiming at barcodes easy and comfortable, enabling the user to focus fully on the task at hand.
Auto-trigger Laser Barcode Scanner
Lightweight scanner with Comfortable grip
Plug and play USB interface
Antimicrobial (optional)
Specifications
| OPERATING INDICATORS | VISUAL: 1 LED / large LED (red/green/orange) NON-VISUAL: BuzzerOPERATING KEYSENTRY OPTIONS: 1 scan keyCOMMUNICATIONRS232: DB9 PTF connector with external power supply, USB: Ver. 1.1, HID/VCP, USB-A connectorPOWERVOLTAGE REQUIREMENT: 5V 10% (Keyboard Wedge and USB), 6V (min.4.5, max. 6.5V) (RS232) CURRENT CONSUMPTION: Max. 200 mADURABILITYTEMPERATURE IN OPERATION: -5 to 50 C / -23 to 122 F HUMIDITY IN OPERATION: 5 -95% (non-condensing) HUMIDITY IN STORAGE: 5 - 90% (non-condensing)AMBIENT LIGHT IMMUNITY: White 3,000 lx max, Fluorescent 3,000 lx max,Direct sun 50,000 lx max DROP TEST: 1.5 m / 5 ft drop onto concrete surface VIBRATION TEST: 10 - 100 Hz with 2G for 1 hour PROTECTION RATE: IP 42 |
