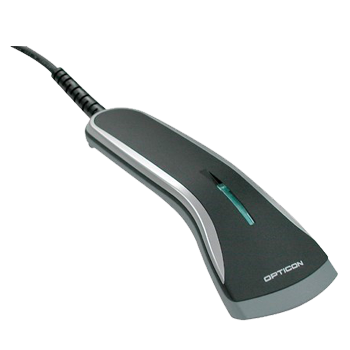

Opticon OPR2001
The OPR-2001 is a sleek, high speed laser scanner that looks stylish and modern on every counter or service desk. The ability to place this scanner on the stand on auto-trigger will free up your hands so they can be used elsewhere.
100 scans per second
Low contrast scanning
Auto trigger modus
Ergonomic design
Specifications
| Operating indicators | Visual: 1 LED (red/green/orange) Non-visual: Buzzer |
| Communication | RS232: DB9 PTF connector with external power supply Keyboard Wedge: MiniDIN6 F/M connector USB: Ver. 1.1, HID/VCP, USB-A connector |
| Power | Voltage requirement: 5V +- 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5 V) (RS232) Current consumption: Max. 150mA |
| Durability | Temperature in operation: -5 to 50C / 23 to 122F Temperature in storage: -20 to 60C / -4 to 140F Humidity in operation: 20 - 85% (non-condensing) Humidity in storage: 10 - 90% (non-condensing) Ambient light immunity: Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max Drop test: 1.5 m / 5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 1 hour Protection rate: IP 42 |
