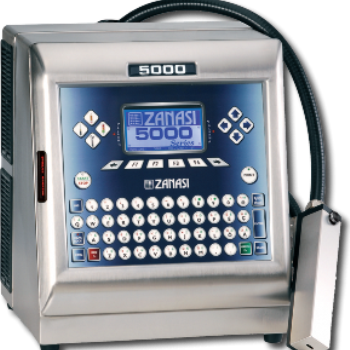

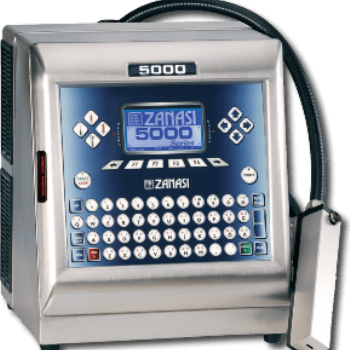

Zanasi Z5000
Z5000 system offers an excellent printing quality thanks to the innovative 32 dots software. Combining the various available matrices, it???s possible to print up to 5 lines made up of alphanumeric characters. The 6 different languages which can be selected for the interface menu and the possibility to print Arabic, Cyrillic, Chinese and Korean characters guarantee the maximum flexibility.
Small Character industrial printing systems
Micro Print Nozzle for high quality resolution print
Specifications
Lines | Up to 5 |
Characters height | from 0.8 to 14 mm (0,032″ – 0,56″) |
Line speed capability | up to 300 mt/min (984 ft/min) |
Print rate | up to 2136 ct/sec |
Storage | 250 messages |
Storage per message | Up to 250 characters |
Font Matrix | 5×5, 7×5, 9×7, 15×10, 16×10, 24×16 and 32×18 |
Bold factor | up to 8 times |
Barcodes | 2/5 Industrial, UPC-A, CODE 39, EAN 13, CODE 128 (A,B,C), EAN 128 (A,B,C), 2D – Datamatrix, ITF (A,B,C) |
Control Unit | Membrane keyboard solvent resistant, Blue WYSIWYG Display with high contrast 240×128 pixels, Stainless Steel structure AISI 304, Protection IP65, Conduit length: 4mt (13,1ft) |
Print Head | Micro Print Nozzle for high quality resolution print (optional), Hermetically sealed printhead component, Auto-phasing of ink stream for consistent print quality, Dimensions: 227mm x 42 mm x 49 mm (9,0″ x 1,7″ x 1,9″), Conduit inlet at 90° (optional), Internal Supply Positive Air Function. |
General | Single Start/Stop button, Automatic cleaning in both Start up and Shut down, Vapour recovery system for low make up consumption, Print parameters stored within each message, Keypad access with password, Operator selectable foreign language prompts, Report function for executed printing counter, Messages storage with 8 digits alphanumeric text |
Temperature | from 5° to 45°C (40° – 113°F) |
Humidity | 10 – 90% (non-condensing) |
Single Phase | 85 – 240Vac, 50 – 60Hz, 200VA |
