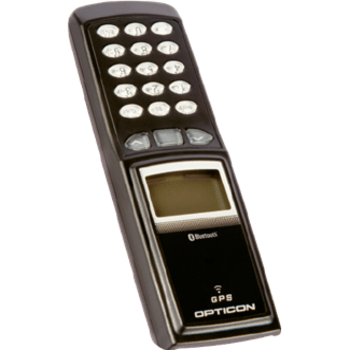

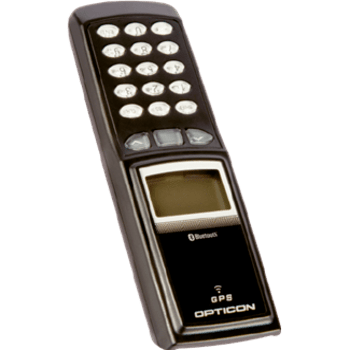

Opticon OPL9815
The OPL-9815 is sealed up to IP 54 standards and withstands drops of 1.5 meter.Various cradles are available providing communication and charging options. The IrDA interface within the cradle allows data transfer when the scanner is inserted for charging. The multiple station cradle permits charging of up to 5 terminals simultaneously.
barcode data collector with Bluetooth and GPS
Comfortable single-hand scanning
IP 54 with drop test 1.5 meter
Specifications
| Operation | CPU: RX62N 32-bit MCU O/S: Proprietary Software: Programmable in C-language. Ansi-C Cross compiler obtainable. Software development kit free downloadable RTC: Supports year, month, day, hour, minute, second (leap year supported) |
| Memory | FlashROM: 1 MB SRAM: 512 kB |
| Display | Type: Graphic LCD with backlight Size: 112 x 64 pixels |
| Operating indicators | Visual: 1 LED (red/green/orange) Non-visual: Buzzer |
| Communication | IrDA: Ver. 1.2, baudrate 2400 bps - 115.2 kbps Bluetooth: Ver. 2.1, class 2, SPP and HID GPS: NMEA 0183, SiRF Star III, 4.8 kbps |
| Power | Rechargeable battery: Lithium-Ion 3.7V 1100mAh Backup battery: Rechargeable manganese silicon lithium battery 3mAh Operating time: Ca. 50 hours (1 scan / 5 sec excl. connection), ca. 10 hours (1 scan / 5 sec incl. GPS connection) Data retention time: Ca. 72 hours Charging method: Separate cradle CRD972x series |
