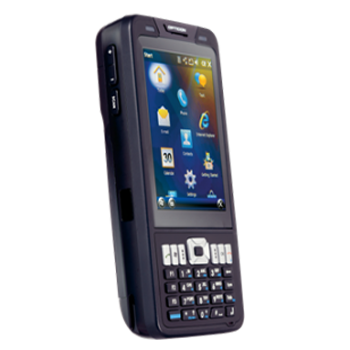

OPTICON H22
Smart phone and scanner combined, coming in various options consisting of the choice between a qwerty or numeric keypad and the option of a 1D or a 2D imager. Whenever you need a smart and sophisticated custom solution the H-22 is your scanner.
Smart phone and scan combination that runs on Windows mobile 6.5.3
1D or 2D scanner
IP64
Specifications
| Operation | CPU: Marvell PXA320 806MHz O/S: MicrosoftA Windows MobileA 6.5.3 |
| Memory | NAND Flash : 512 MB SDRAM: 256 MB Expansion: User accessible microSD + HC |
| Display | Type: Blanview TFT LCD, 262k color display with touch screen Size: 3.7", 480 x 640 pixels Mode: Portrait / Landscape |
| Power | Rechargeable battery: Lithium-Ion 3.7V 3060mAh Backup battery: 18mAh for main battery hotswap Charging method : Enclosed power supply, separate car charging adapter, separate cradle |
| Durability | Temperature in operation: -10 to 50 C / 14 to 122 F Temperature in storage : -30 to 80 C / -22 to 176 F (main battery storage: -20 to 60 C / -4 to 140) Humidity in operation: up to 95% (non-condensing) Humidity in storage : up to 95% (non-condensing) Drop test : 1.5 m / 5 ft drop onto concrete surface Protection rate : IP 65 |
| Physical | Dimensions (w x h x d): 151 x 75 x 25 mm / 5.94 x 2.95 x 0.98 in Weight body: Ca. 340 g / 12 oz (incl. battery) Case : Black |
