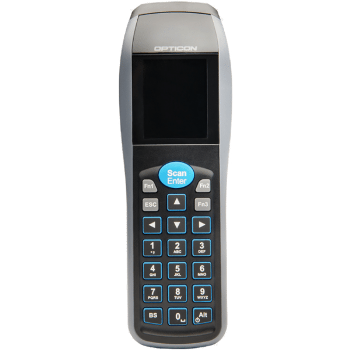

Opticon OPH3001

The OPH-3001 is designed to make scanning a comfortable experience, especially if scanning is required often. The ergonomic design includes a soft grip, a curved scan head for relieve stress from the wrists and a bright display for better readability. But this scanner is still a mobile scanning device, capable of running complex applications.

Ergonomic design with curved scan head and soft grip

Bright display for easy reading

Clear scanning feedback with LED and buzzer

Lightweight

Specifications

OPERATION
CPU: RX62N 32-bit MCU O/S: Proprietary SOFTWARE: Programmable in
C-language. Software development kit with compiler free downloadable RTC:
Supports year, month, day, hour, minute, second (leap year supported)
MEMORY
FLASHROM: 4 MB SDRAM: 4 MB NAND FLASH: 128 MB
DISPLAY
TYPE: TFT LCD QVGA color display with backlight SIZE: 2 inch, 320 x 240 pixels
FONT SIZE: 6x6 / 6x12 / 8x8 / 8x16 / 12x24 dots
OPERATING INDICATORS
VISUAL: 1 LED (red/green) NON-VISUAL: Buzzer
COMMUNICATION
USB: Mini USB, Ver. 2.0, VCP IRDA: Ver. 1.2, baudrate 1200 bps - 115.2 kbps
POWER
RECHARGEABLE BATTERY: Lithium-Ion 3.7V 1100mAh BACKUP BATTERY:
Lithium (CR2032) OPERATING TIME: Ca. 40 hours (backlight off, 1 scan / 10
sec) CHARGING METHOD: Enclosed USB cable
DURABILITY
TEMPERATURE IN OPERATION: -10 to 50 C / 14 to 122 F TEMPERATURE
IN STORAGE: -20 to 60 ??C / -4 to 140 ??F CHARGING TEMPERATURE: 0 to
40 C (32 to 104 F) HUMIDITY IN OPERATION: 20 - 85% (non-condensing)
HUMIDITY IN STORAGE: 20 - 85% (non-condensing) DROP TEST: 1.5 m / 5 ft
drop onto concrete surface PROTECTION RATE: IP 54
