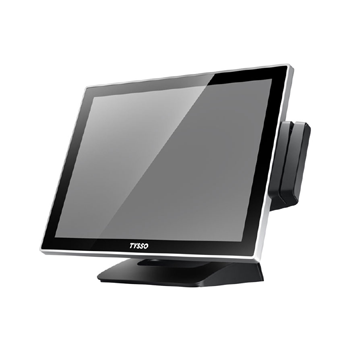

TYSSO TP1515
The TP-1515 is a Space-Saving Full Flat touch screen POS terminal that suit for variety of market segments. TP-1515 consists of low power consumption processors and Fanless Cooling technology to enable TP-1515 operate with less noise and heat; that make TP-1515 suitable for the location that noise is often taken into consideration.
15 Inches Full Flat Fanless POS System TP-1515
Fanless Cooling System
Specifications
| CPU | IntelA Bay Trail-D Platform, CeleronA Processor J1900(2.0 GHz, 2M Cache, up to 2.42 GHz) |
| System Memory | DDR3L SO-DIMM 1333MHz x 2, up to 8 GB max |
| Graphic | IntelA HD Graphics |
| OS Support | POS Ready 7, Windows 7, Windows 8.1, Windows 10, Linux |
| Screen Size | 15" |
| Brightness | 300 nits |
| Resolution | 1024 x 768 Pixel |
| Touch Screen | 5-Wire Resistive Type or Projective Capacitive |
| Tilting Angle | 15° ~ 85° |
| HDD | 1 x 2.5 SATA |
| Auxiliary Storage | 1 x mSATA slot (Internal) |
| Serial | 4 x COM (DB9, with power output, +5VDC/+12VDC, selectable by Jumper)2 x COM (Internal, reserved for VFD Customer Display and MSR) |
| Parallel | 1 x DB25 Parallel Port |
| USB | 5 x USB 2.0 (External, 4 x bottom/ 1 x side) |
| LAN | 1 x RJ-45, Giga LAN Support |
| VGA | 1 x DB-15, Female |
| DC Out | 1 x 12VDC Jack for Customer Display or 2nd Display |
| Cash Drawer | 1 x RJ-11, +12/+24 VDC |
| Audio | 1 x Internal Speaker |
| Power Adaptor | +12VDC 60W,4-pin Connector with Lock (External Adaptor: 100 ~ 240 VAC, 50/60HZ) |
| Color | Black, Silver (by custom) |
| Weight | 5 kg |
| Dimension (mm) | 355.44 x 302.92 x 204.87 |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH non-condensing |
