Opticon OPC3301

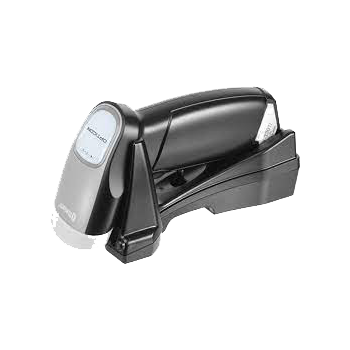

The OPC-3301i is a compact wireless handheld CCD scanner that uses Bluetooth for real-time data transfer. It is easy to use and makes the user mobile while scanning. It can be connected to any Apple product due to the MFi certification. The OPC-3301i is a CCD scanner well worth its name.
1D Barcode Scanning
Bluetooth connection
Lightweight
Plug and play
Specifications
| Memory | SDRAM: 1MB Flash ROM: 1MB |
| Operating indicators | Visual: 1 large LED (red/green/blue) Non-visual: Buzzer |
| Communication | Bluetooth: Ver. 2.1, SPP/HID, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption |
| Power | Current consumption: 15mA (stand by), max 200mA Battery: Lithiumion 3.7V 1100mAh Operating time stand by: Approx 72 hours (with wireless connection) Reading: Approx. 48 hours (1 scan / 5 sec) Charging method: Separate cradle CHG-3201 Battery charging time: Ca. 3 hours (when charged with power supply) |
| Durability | Temperature in operation: -0 to 50 C / 32 to 122 F Temperature in storage: -20 to 60 C / -14 to 140 F Humidity in operation: 20 - 85% (non-condensing) Humidity in storage: 20 - 85% (non-condensing) Ambient light immunity: Fluorescent 10,000 lx max, Direct sun 100,000 lx max Drop test: 1.5 m / 5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 1 hour Protection rate: IP 42 |
