Zanasi ModuPrint
ModulPrint is the proper choice for all applications with multiple production lines which have to be controlled from one console and when a number of lines have to be printed on various sides of a package
Large Character industrial printing system
can print logos, alphanumerical texts, expiry dates, counters, etc.
Specifications
| Modular management | Up to 16 printheads |
| Characters height | 5 to 190 mm |
| Line speed capability | 180 mt/min (591 ft/min) |
| Storage | 100 messages |
| Storage per message | Up to 250 characters |
| Font Matrix | 5x5, 7x5, 9x7, 16x10, 32x18 |

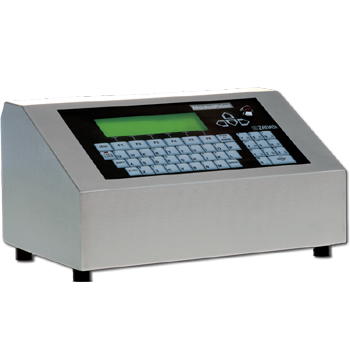

| Control Unit | Membrane keyboard solvent resistant, Backlit graphics WYSIWYG display, Stainless steel structure AISI 304, Printhead – console distance: up to 10 mt (33 ft). |
| Print Head | High speed solenoid technology, Rapid drying solvent based high adhesion inks, Stainless steel nozzle plate AISI 304, Stainless steel structure AISI 304, Dimensions printhead 7 dots: 230 mm x 80 mm x 45 mm , Dimensions printhead 16 dots: 230 mm x 80 mm x 85 mm , Dimensions printhead 32 dots: 230 mm x 80 mm x 154 mm . |
| General | Ability to store the printing parameters in each message, Report function for executed printing counter, Operator password access, Operator interface with foreign languages. |
| Temperature | from 5° to 45°C |
| Humidity | 10 - 90% (non-condensing) |
| Single Phase | 85 - 240Vac, 50 - 60Hz, 200VA |
