TYSSO PRP250C
High speed print head module to perform the 24/7 heavy-duty printing Jobs,provides variety of interfaces for terminal connection: USB, RS-232, parallel, Ethernet (RJ-45) and Cash drawer (RJ-11).

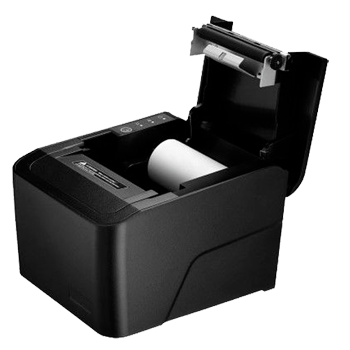

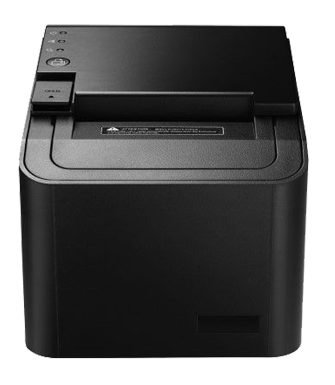

Thermal receipt printer with Compact and Stylish Design
Easy maintenance and fascinating high-speed performance
Specifications
| Print Method | Thermal line printing |
| Print Speed | 250 mm/sec |
| Print Life | 100 Km |
| Print Font (ASCII Mode) | ANK Font, Font A: 12 x 24 dots, Font B: 9 x 17 dots |
| Print Font (Graphic Font) | Chinese character: 24 x 24 dots |
| Print Resolution | 576 dots/line or 512 dots/line |
| Effective Print Width | 72 mm |
| Paper Width | 79.5mm ?? 0.5mm |
| Paper Roll Diameter | 83mm |
| Paper Thickness | 0.06 ~ 0.08mm |
| Driver | Win 9X / Win ME / Win 2000 / Win 2003 / Win NT / Win XP / Win Vista / Win 7,compatible with EPSON and SAMSUNG |
| Print Command | ESC / POS print commands set |
| Auto Cutter | Full or Partial |
| Interface | (Serial + Ethernet + USB) |
| Cash Drawer | DC 24V/1A, 6-Wire RJ-11 Socket |
| Power Input | 24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz) |
| Color | Red / White / Black |
| Weight | 1400 g (without cable) |
| Dimension (L x W x H: mm) | 183.5 x 140 x 126 |
| Operating Temperature | 0C ~ 45C |
| Operating Humidity | 10% ~ 80% RH non-condensing |
| Storage Temperature | -10C ~ 60C |
| Storage Humidity | 10% ~ 90% RH non-condensing |
