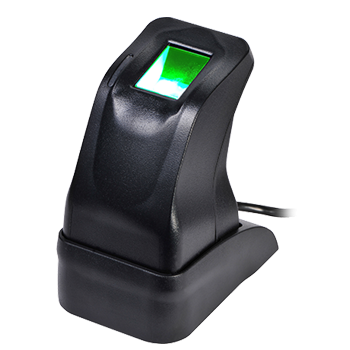

ZKTeco ZK4500
High-performance, maintenance-free optical fingerprint sensor, It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS, widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.
Stable and excellent fingerprint scanner
capture fingerprint image and upload to the PC by USB interface
Specifications

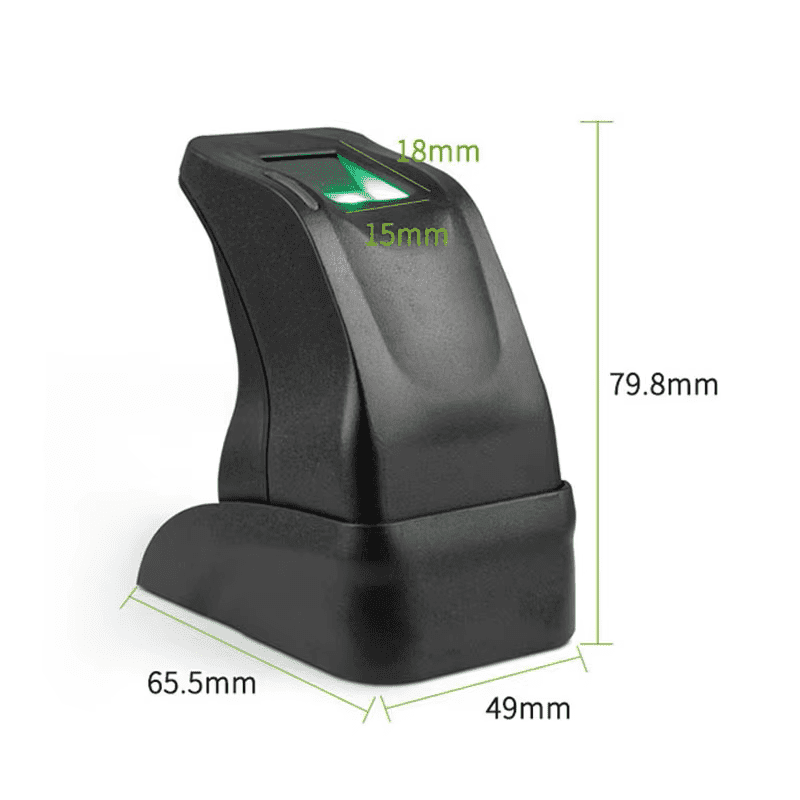

| Material | Optical CPU : 120MHz DSP Flash :A 16 KB SoC : RTOS Image Quality : 0.3 million pixels CMOS Encrypted Fingerprint Data : NA Sunlight Operation : White filed, General Sunlight Water Splash : YES Dry, Wet, or Rough Fingerprints :A General Level Power Consumption : 5V:200mA Scanning; 5V:90mA idle (waiting for finger) Live Fingerprint Detection :A NO LED : Green Product Certifications : FCC, CE Power Voltage : 5V (USB) Power Current : 200mA Communication : USB 2.0 / USB1.1 / USB1.0 Interface Socket : USB Type A Image Resolution : 500 dpi Effective Collecting Area : 13.24 * 15.7 mm Collecting Area : 15.4*18 mm Image Size :A 280*360 pixel Dimension : 65.5 * 48 * 79.8mm (L*W*H) Image Format : BMP Template : ZKFinger V10 Template Size : <2kb, (zkfinger="" v10.0);1568="" b="" (iso=""> Gray Level : 256 Weight : 0.25kg Operating Environment : -20 A?C ~ +50 A?C; 90% r.h. |
