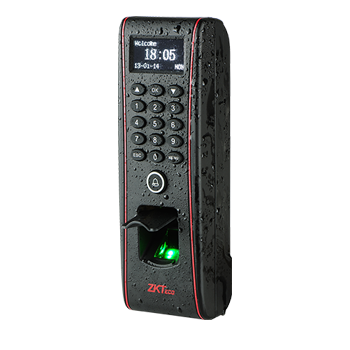

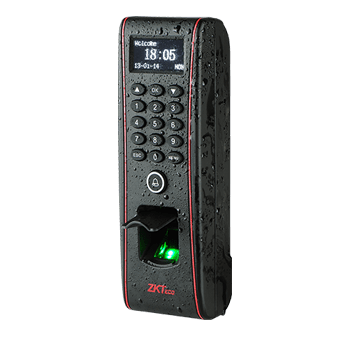

ZKTeco TF1700
IP65 rated rugged waterproof and dustproof structure, extra durability in harsh conditions such as outdoor environments, sensor cover to protect the optical reader.
Access Control and Time Attendance Machine
IP65 Waterproof for Outdoor Installation
Specifications
| Fingerprint Sensor | Infrared detection Fngerprint sensor |
| Algorithm Version | ZK Finger 10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Fingerprint Capacity | 3,000 Fingerprints(8,000 Optional) |
| Card Capacity | 30,000 Cards |
| Log Capacity | 100,000 Transactions |
| RF Card | EM(standard)/Mifare(optional) |
| Authentication | Finger/PIN/Card |
| Wiegand Signal | Wiegand input&output |
| Ingress Protection Rate | IP65 |
| Display | 128 x 64 OLED?? |
| Keypad | 3 x 5 keypads & doorbell |
| Sound and Interface | Buzzer and multi-color LED |
| Operating Voltage | 12VDC 3A |
| Operating Temperature | -10 C~50 C (14 F ~ 122 F) |
| Dimension | 62.5mmX185mmX41.5mm (WXHXD) |
