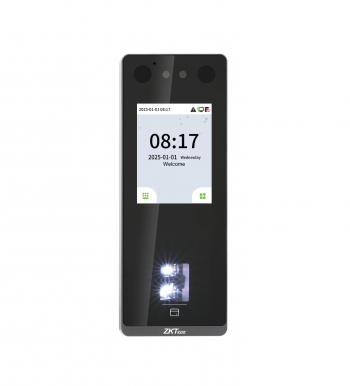

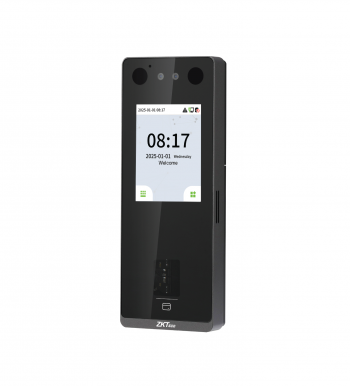

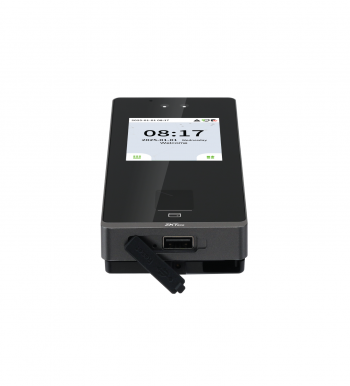

ZKteco BioFace A1 in Dubai
The BioFace A1 is a powerful multi-biometric access control terminal integrating visible light facial authentication and in-glass fingerprint technology for fast, accurate, and secure verification. It supports facial, fingerprint, card, and password authentication with advanced anti-spoofing protection against fake photos and videos. Featuring SIP-based HD video intercom and ONVIF compatibility, it connects seamlessly with indoor units and security systems. Its firmware supports AC push, TA push, and BEST protocol for full integration with ZKBioTime 9.5, BioTime Cloud, and CVSecurity. Powered by ZKTeco Dubai and ZKTeco UAE, it delivers reliable access control across the Middle East.
Multi-Verification Access Control Terminal
Fast and Secure Facial & Fingerprint Matching
Seamless Integration with ZKBioTime and Cloud Platforms
Specifications
| Model | BioFace A1 |
| Display | 2.8" TFT Color Touch LED Screen (240×320) |
| Camera | WDR Binocular Camera @ 1MP |
| Operating System | Linux |
| Hardware | CPU Dual Core @1GHz; RAM 512MB; ROM 8GB; Speaker 8Ω @1W; Microphone -42 dB / Omni-directional / SNR 58 dB / Impedance 2.2kΩ; Supplement Light: No; Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| Authentication Methods | Fingerprint, Face, Card, Password |
| Fingerprint Template Capacity | 6,000 (1:N) |
| Face Template Capacity | 3,000 (1:N) |
| Card Capacity | 6,000 |
| User Capacity | 6,000 |
| Transaction Capacity | 150,000 |
| Max Password Length | 8 digits |
| Authentication Speed | <0.5s (Fingerprint), <0.35s (Face) |
| Touchless Facial Distance | 30 cm – 200 cm |
| False Acceptance Rate (FAR) | ≤0.01% (Face); ≤0.0001% (Fingerprint) |
| False Rejection Rate (FRR) | ≤0.02% (Face); ≤0.01% (Fingerprint) |
| Biometric Algorithms | ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional) |
| Card Type | ID 125 kHz (Standard), IC 13.56 MHz (Optional) |
| Communication | TCP/IP; Wi-Fi 2.4 GHz (Optional); Wiegand Input/Output; RS485; USB Type A; Aux Input; Electric Lock; Door Sensor; Exit Button; 12V Output |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Schedule Bell, Tamper Alarm, Auto Status Switch, SIP Client v2.0, ONVIF (Profiles S/T/G/C/Q/A), AC Push / TA Push, HTTPS/SSH Backend, T9 Input |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Video Intercom (Private Protocol) | Supports SenseFace Series & VT07-B01/B01-W Indoor Monitors |
| Video Intercom (SIP) | Supports SenseFace Series, VT07-B22L, VT07-B26L-W; Compatible Software: ZKBio CVAccess, BioTalk Pro; Apps: ZKBio ZLink, ZKBio Zexus |
| Access Control Interface | RS485 (Card Reader/Biometric Reader) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10%–90% (Non-condensing) |
| Dimensions | 166 × 63 × 25 mm |
| Net Weight | 0.185 kg |
| Supported Software | ZKBio CVAccess (AC Push); ZKBio Time (TA Push); ZKBio Zlink Cloud (Web + Mobile) |
| Installation | Wall-mount (Asian Gang Box / Single Gang Box compatible) |
| Ingress Protection | IP65 (Waterproof & Dustproof) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
Key Features
Applications & Use Cases
Retail Chain Staff Attendance
The ZKTeco BioFace A1 provides fast AI-based facial recognition for retail staff attendance, reducing queues and improving branch workforce management.
Healthcare Secure Access Control
Hospitals use the ZKTeco BioFace A1 for hygienic, touchless access control, ensuring accurate verification and protecting restricted medical zones.
University and School Entry Management
The ZKTeco BioFace A1 automates student and staff entry, integrates with attendance platforms, and enhances campus security through multi-biometric authentication.
Residential and Community Gate Access
Gated communities adopt the ZKTeco BioFace A1 for AI-powered face access, ensuring secure, fast, and reliable entry for residents and visitors.
